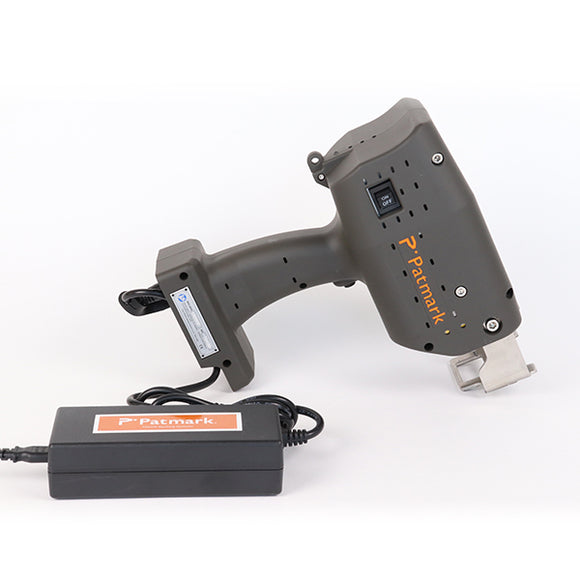

Patmark Pin Marking Device
Expand your marking capabilities with the Patmark industrial pin marker! Featuring a wide 33mm (1.3") window, it gives you an efficient and cost-effective variable marking solution. Achieve permanent and deep marks using a durable tool that is fully portable with the rechargable battery. Connect through an iOS or android device to work wire-free for greater ease of use and a faster change of marking designs.
Need additional or replacement pins? Click here to by a replacement pin and spring!
Features:
- Can be used for marking alphabet characters, numbers, and various symbols in addition to logos from BMP and JPG files

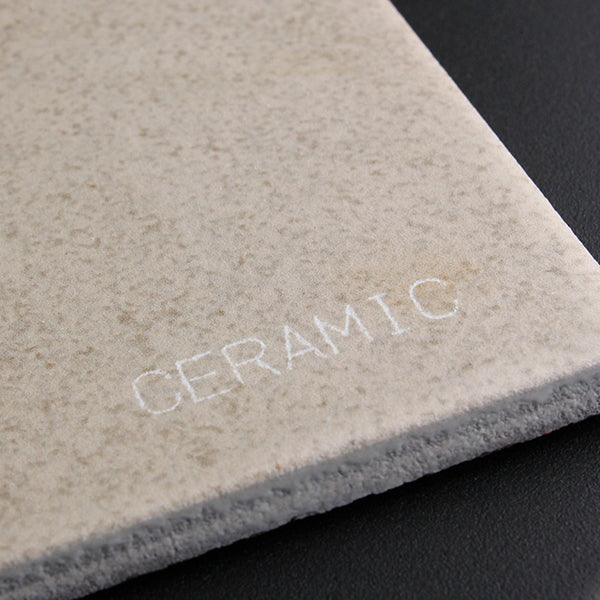

- Great for dot peen marking metal, plastic, paper, and wood
- Marking area of 1.3" (33mm) x 0.6" (15mm)
- Adjustable text height and options for multiple line marking using the included Windows software
- Adjustable marking force
- Adjustable font resolution to ensure the precise clarity needed
- Capable of creating QR codes and data matrices
- Incremental serial numbering using included Windows software from 1 to 9999
- Date marking available using included Windows software for year, month, day, hour, minute, second, Julian date, and shift
- Capable of storing 255 files in the handheld device
- Assembled in Japan
Availability:
Special order - please call for availability
This product can not be returned
| App | PatMark Windows Software | |
| Multiple-line marking | One line only | Multiple lines are possible up to 30 fields |
| Text height | Choose from Small, Medium, and Large sizes. 1 to 15 mm with 0.5mm pitch increments. |
Choose from 1mm to 15mm, in 0.1 mm pitch increments. |
| Marking force | Choose from weak, medium, and strong. *Value from 0 (weak) and 9 (strong) can be specified in the default setting menu. |
Enter a value between 0 (weak) and 9 (strong). |
| Font quality | Choose from low, medium, and high. *Value from 1 (low - faster) and 9 (high - slower) can be specified in the default setting menu. | Enter a value between 1 (low - faster) and 9 (high - slower). |
| Logo marking | Only Available Through PatMark Windows Software |
BMP and JPG data – browse and trace in Logo Editor DXF data – auto convert *Only when connecting with a PC |
| 2D code | Only Available Through PatMark Windows Software |
QR code (up to 80 alphanumeric characters and symbols) Data matrix (up to 80 alphanumeric characters and symbols) |
| Serial numbers | Only Available Through PatMark Windows Software | Numbering range from 1 to 9999. |
| Date marking | Only Available Through PatMark Windows Software | Year, month, day, hour, minute, second, Julian date, shift |
| Power supply | AC adapter | Input: AC100V-240V, 50/60Hz (120W) |
|---|---|---|
| Lithium-ion battery | *25.2V, 2.0Ah | |
| Battery charger | Input: AC100V-240V, 50/60Hz | |
| Weight | When using AC adapter | 2.3kg (4.9lbs) |
| When using lithium-ion battery (*2Ah type) |
2.9kg (6.4lbs) | |
| Dimensions | When using AC adapter | 124mm (4.9in) x 221mm (8.7in) x 250mm (9.9in) |
| When using lithium-ion battery (*2Ah type) |
124mm (4.9in) x 221mm (8.7in) x298.4mm(11.7in) | |
| Marking area |
X axis 33mm (1.3in) x Y axis 15mm (0.6in) |
|
| Stylus Pin | Standard Pin (52mm long) 120 degree angle | |
| Software | App | Wi-Fi |
| Windows software | Wi-Fi, USB | |
| Markable materials | Metal (up to about HRC62), plastic, paper, and wood | |
